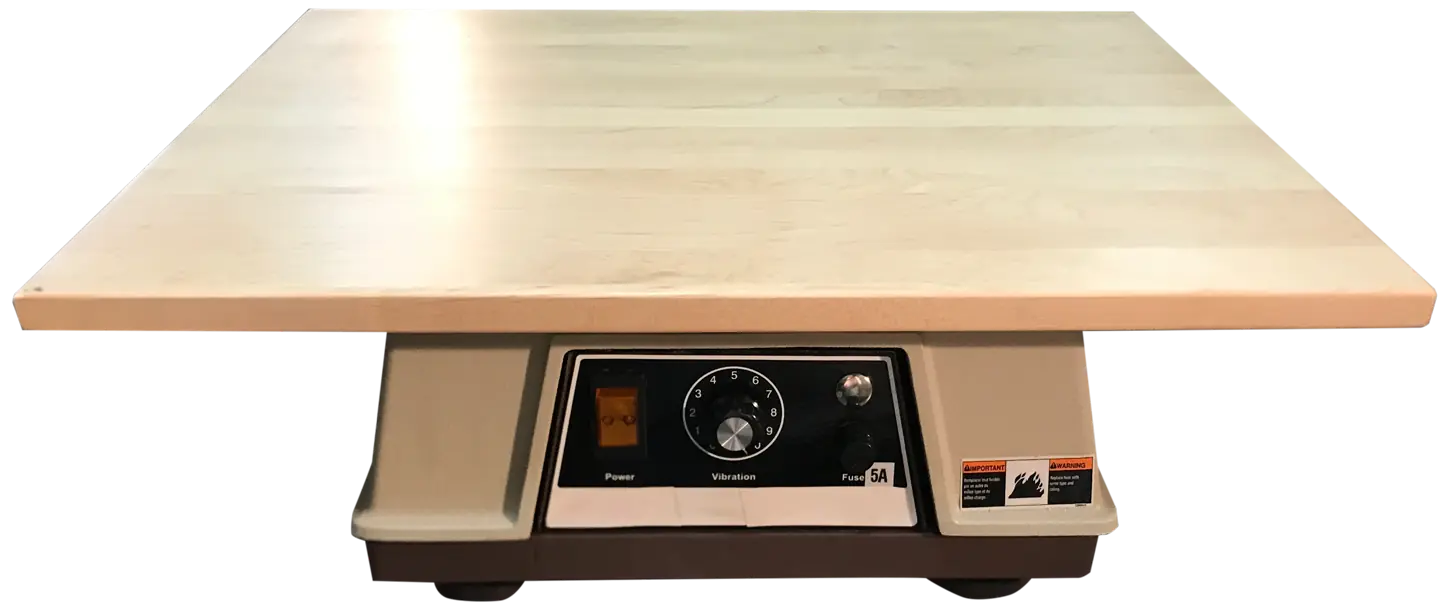

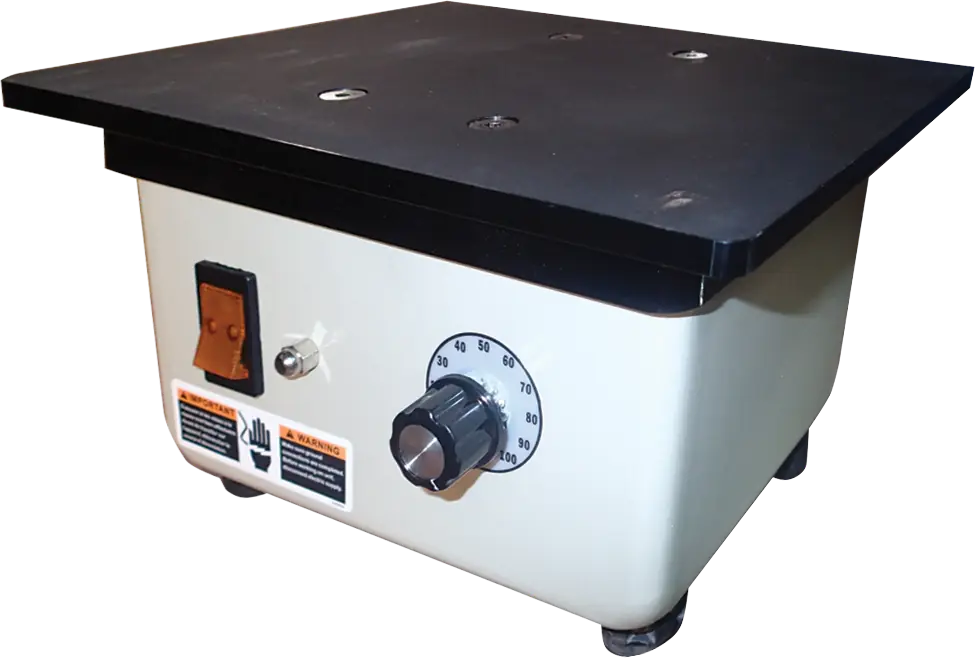

Our Model JT (Jogger Tables) are designed to settle and compact powdered materials in whatever mold or container that your application requires. This small vibrating table is designed for tabletop operation and is able to handle loads up to 50 lbs. With 115V electromagnetic drives, our JT models are ideal for lab and factory use. These models are equipped with a variable amplitude controller built into the table. We offer three deck sizes and all of them are shipped wired and ready for operation. All you need to do is plug it in and turn it on!
| Model | Replace Model | H.P. | Max Force (lbs) | Drawg. Ref. | Dimensions | Full Load Amps At 230V / 460V | W.T. (lbs) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | K | L | M | |||||||
| SEE-0.1-2 | BES-30-2 | 1/50 | 30 | 2 | 3-11/32" | 3-7/16" | 5-5/16" | 1-47/64" | 3-35/64" | 2-3/8" | 4-7/32" | NA | 1-37/64" | 23/32" | 3/32" | 1-25/32" | 11/32" | 0.39 | 6 |
| SEE-0.5-2 | BES-110-2 | 1/25 | 110 | 7 | 4-19/64" | 6-5/8" | 8" | 1-9/16" | 4-11/16" | 2-3/4" | 5-21/32" | NA | 1-37/64" | 1-9/32" | 29/64" | 2-29/64" | 7/16" | 0.53 | 14 |
| SEE-1-2 | BES-220-2 | 1/12 | 220 | 1 | 4-5/32" | 6-5/16" | 8-15/32" | 3-5/32" | 5-1/8" | 4-11/32" | 6-5/16" | 1-19/32" | 1-37/64" | 1-15/32" | 13/32" | 2-5/8" | 15/32" | 1.2 | 22 |
| SEE-2-2 | BES-440-2 | 1/6 | 440 | 2 | 4-11/32" | 6-29/32" | 9-15/32" | 3-35/64" | 5-29/32" | 4-23/32" | 7-3/32" | 1-25/32" | 1-37/64" | 1-19/32" | 15/32" | 2-13/16" | 9/16" | 1.9 | 30 |
| SEE-3.5-2 | BES-770-2 | 1/3 | 770 | 3.5 | 4-15/16" | 7-11/16" | 11-13/16" | 4-21/64" | 7-31/64" | 5-29/32" | 9-1/16" | 2-3/16" | 2-3/8" | 2-31/32" | 19/32" | 3-5/16" | 23/32" | 2.9 | 45 |
| Model | Replace Model | H.P. | Max Force (lbs) | Drawg. Ref. | Dimensions | Full Load Amps At 230V / 460V | W.T. (lbs) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | K | L | M | |||||||
| KEE-0.5-2 | BE-110-2 | 1/20 | 110 | 1 | 4-19/64" | 5-55/64" | 8" | 1-9/16" | 4-11/16" | 2-3/4" | 5-21/32" | NA | 1-37/64" | 1-9/32" | 29/64" | 2-29/64" | 7/16" | 0.33 (0.15) | 10 |
| KEE-1-2 | BE-220-2 | 1/10 | 220 | 1 | 4-19/64" | 5-55/64" | 8" | 1-9/16" | 4-11/16" | 2-3/4" | 5-21/32" | NA | 1-9/32" | 1-9/32" | 29/64" | 2-29/64" | 7/16" | 0.41 (0.25) | 15 |
| KEE-2-2 | BE-440-2 | 1/5 | 440 | 1 | 4-19/64" | 5-55/64" | 9" | 1-9/16" | 4-11/16" | 2-3/4" | 5-21/32" | 1-9/32" | 1-31/32" | 1-15/32" | 25/64" | 2-29/64" | 7/16" | 0.62 (0.35) | 20 |
| KEE-3.5-2 | BE-770-2 | 1/3 | 770 | 2 | 4-11/32" | 6-29/32" | 10-7/16" | 3-35/64" | 5-29/32" | 4-23/32" | 7-3/32" | 1-25/32" | 2-11/64" | 1-19/32" | 15/32" | 2-15/16" | 9/16" | 1.1 (0.60) | 35 |
| KEE-6-2 | BE-1320-2 | 1/2 | 1,250 | 2 | 4-11/32" | 6-29/32" | 10-7/16" | 3-35/64" | 5-29/32" | 4-23/32" | 7-3/32" | 1-25/32" | 2-11/64" | 1-19/32" | 15/32" | 2-15/16" | 9/16" | 1.6 (0.90) | 55 |
| KEE-10-2 | BE-2200-2 | 1 | 2,250 | 3 | 6-11/16" | 8-9/32" | 13-25/32" | 4-23/32" | 8-21/32" | 6-11/16" | 10-5/8" | 2-9/16" | 1-31/32" | 1-3/8" | 23/32" | 3-5/8" | 13/16" | 2.7 (1.4) | 78 |
| KEE-16-2 | BE-3520-2 | 1-1/2 | 3520 | 3 | 6-11/16" | 10-1/4" | 16-17/32" | 5-33/64" | 9-29/64" | 7-7/8" | 11-13/16" | 2-31/32" | 2-9/16" | 2-3/4" | 13/16" | 5-1/16" | 1-1/32" | 4.0 (2.0) | 110 |
| KEE-23-2 | BE-5060-2 | 2-1/4 | 5060 | 3 | 7-1/2" | 11-1/32" | 17-23/32" | 5-29/32" | 10-15/64" | 8-9/32" | 12-19/32" | 3-5/32" | 2-3/8" | 2-3/4" | 13/16" | 5-19/32" | 1-1/32" | 5.6 (2.9) | 140 |
| KEE-30-2 | BE-6600-2 | 3 | 6600 | 3 | 8-7/8" | 12-19/32" | 19-11/16" | 6-11/16" | 12-13/64" | 9-7/16" | 14-31/32" | 3-3/4" | 2-9/16" | 3-11/32" | 1-1/8" | 6-7/32" | 1-5/16" | 7.0 (3.6) | 210 |
| KEE-40-2 | BE-8800-2 | 4 | 8800 | 3 | 8-7/8" | 14-19/32" | 22-1/16" | 8-21/32" | 13-25/32" | 11-13/16" | 16-15/16" | 4-11/32" | 2-9/16" | 3-15/16" | 1-5/16" | 7-9/32" | 1-17/32" | 9.8 (4.9) | 290 |
| Model | Replace Model | H.P. | Max Force (lbs) | Drawg. Ref. | Dimensions | Full Load Amps At 230V / 460V | W.T. (lbs) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | K | L | M | |||||||
| KEE-1.5-4 | BE-330-4 | 1/10 | 330 | 1 | 4-19/64" | 5-55/64" | 10" | 1-9/16" | 4-11/16" | 2-3/4" | 5-21/32" | 1-9/32" | 2-9/16" | 1-3/16" | 25/64" | 2-29/64" | 7/16" | 0.5 (0.33) | 25 |
| KEE-3-4 | BE-660-4 | 1/6 | 660 | 4 | 6-1/8" | 7-3/32" | 10-5/8" | 3-5/32" | 5-29/32" | 4-11/32" | 7-3/32" | 1-19/32" | 2-11/64" | 1-3/8" | 13/32" | 3-5/16" | 15/32" | 0.8 (0.52) | 35 |
| KEE-6-4 | BE-1320-4 | 1/3 | 1320 | 4 | 6-11/16" | 7-11/16" | 12-19/32" | 3-15/16" | 6-19/64" | 5-1/8" | 7-1/2" | 1-25/32" | 2-61/64" | 1-19/32" | 15/32" | 3-5/8" | 9/16" | 1.2 (0.70) | 50 |
| KEE-9-4 | BE-1980-4 | 1/2 | 1980 | 4 | 7-1/2" | 8-9/32" | 13-3/8" | 4-21/64" | 7-3/32" | 5-29/32" | 8-21/32" | 2-3/16" | 2-61/64" | 1-31/32" | 19/32" | 4-1/32" | 23/32" | 1.7 (0.99) | 70 |
| KEE-9-4S | BE-1980-4S | 1/2 | 1980 | 4 | 8-55/64" | 9-29/64" | 13-63/64" | 5-33/64" | 8-21/32" | 7-31/64" | 10-10/16" | 2-9/16" | 2-9/16" | 2-3/8" | 20/32" | 4-23/32" | 7/8" | 1.7 (0.99) | 94 |
| KEE-12-4 | BE-2640-4 | 4/5 | 2640 | 4 | 8-7/8" | 9-15/32" | 14-3/16" | 5-33/64" | 8-21/32" | 7-1/2" | 10-5/8" | 2-9/16" | 2-9/16" | 2-3/8" | 23/32" | 4-23/32" | 7/8" | 2.5 (1.4) | 95 |
| KEE-17-4 | BE-3740-4 | 1-1/10 | 3740 | 4 | 9-21/32" | 10-1/4" | 16-17/32" | 5-33/64" | 9-29/64" | 7-7/8" | 11-13/16" | 2-31/32" | 3-5/32" | 2-3/4" | 7/8" | 5-1/8" | 1-1/32" | 3.0 (1.6) | 125 |
| KEE-24-4 | BE-5280-4 | 1-1/2 | 5280 | 4 | 10-7/16" | 11-1/32" | 18-29/32" | 5-29/32" | 10-15/64" | 8-9/32" | 12-19/32" | 3-5/32" | 3-47/64" | 2-3/4" | 7/8" | 5-19/32" | 1-1/32" | 3.8 (2.0) | 165 |
| KEE-34-4 | BE-7480-4 | 2 | 7480 | 4 | 11-5/8" | 12-19/32" | 20-7/8" | 6-11/16" | 12-13/64" | 9-15/32" | 14-31/32" | 3-3/4" | 3-47/64" | 3-11/32" | 1-1/8" | 6-7/32" | 1-5/16" | 5.0 (2.6) | 245 |
| KEE-52-4 | BE-11440-4 | 3 | 11440 | 4 | 13-19/32" | 14-3/8" | 23-7/32" | 8-21/32" | 13-25/32" | 11-13/16" | 16-15/16" | 4-11/32" | 3-11/32" | 3-15/16" | 1-5/16" | 7-9/32" | 1-17/32" | 7.7 (4.0) | 375 |
| KEE-75-4 | BE-16500-4 | 5 | 16500 | 5 | 15-9/16" | 16-11/32" | 24-13/16" | 4-59/64" | 14-31/32" | 13-1/32" | 18-1/8" | NA | 3-15/16" | 4-5/32" | 1-5/64" | 8-9/32" | 1-17/32" | 12.3 (6.2) | 495 |
| KEE-84-4 | BE-18480-4 | 7-1/2 | 18480 | 5 | 15-9/16" | 16-11/32" | 26-3/8" | 4-59/64" | 14-31/32" | 13-1/32" | 18-1/8" | NA | 3-15/16" | 4-5/32" | 1-5/16" | 8-9/32" | 1-17/32" | 18.2 (9.4) | 565 |
| KEE-110-4 | BE-24200-4 | 10 | 24200 | 5 | 18-5/16" | 18-23/32" | 28-3/4" | 5-33/64" | 17-21/64" | 14-9/16" | 20-7/8" | NA | 4-23/32" | 4-15/16" | 1-1/2" | 9-15/32" | 1-25/32" | 25 (13) | 805 |
| Model | Replace Model | H.P. | Max Force (lbs) | Drawg. Ref. | Dimensions | Full Load Amps At 230V / 460V | W.T. (lbs) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | K | L | M | |||||||
| KEE-3-6 | BE-660-6 | 1/4 | 660 | 4 | 6-11/16" | 7-11/16" | 11-7/16" | 3-15/16" | 6-19/64" | 5-1/8" | 7-1/2" | 1-25/32" | 3-11/32" | 1-9/32" | 15/32" | 3-5/8" | 9/16" | 1.1 (0.65) | 49 |
| KEE-5-6 | BE-1100-6 | 1/2 | 1100 | 4 | 7-1/2" | 8-9/32" | 13" | 4-21/64" | 7-3/32" | 5-29/32" | 8-21/32" | 2-3/16" | 3-35/64" | 1-31/32" | 19/32" | 4-1/32" | 23/32" | 1.9 (1.3) | 71 |
| KEE-9-6 | BE-1980-6 | 4/5 | 1980 | 4 | 8-7/8" | 9-15/32" | 14-9/16" | 5-33/64" | 8-21/32" | 7-1/2" | 10-5/8" | 2-9/16" | 3-47/64" | 2-3/8" | 23/32" | 4-23/32" | 13/16" | 2.7 (1.6) | 104 |
| KEE-13-6 | BE-2860-6 | 1-1/10 | 2860 | 4 | 9-21/32" | 10-1/4" | 15-3/8" | 5-33/64" | 9-29/64" | 7-7/8" | 11-13/16" | 2-31/32" | 4-9/64" | 2-3/4" | 13/16" | 5-1/8" | 1-1/32" | 3.7 (2.1) | 139 |
| KEE-18-6 | BE-3960-6 | 1-1/2 | 3960 | 4 | 10-7/16" | 11-1/32" | 17-23/32" | 5-29/32" | 10-15/64" | 8-9/32" | 12-19/32" | 3-5/32" | 4-23/32" | 2-3/4" | 13/16" | 5-19/32" | 1-1/32" | 4.8 (2.7) | 185 |
| KEE-24-6 | BE-5280-6 | 2 | 5280 | 4 | 11-5/8" | 12-19/32" | 19-11/16" | 6-11/16" | 12-13/64" | 9-15/32" | 14-31/32" | 3-3/4" | 4-23/32" | 3-11/32" | 1-1/8" | 6-7/32" | 1-5/16" | 6.1 (3.3) | 265 |
| KEE-34-6 | BE-7480-6 | 3 | 7480 | 4 | 13-19/32" | 14-3/8" | 22-7/16" | 8-21/32" | 13-25/32" | 11-13/16" | 16-15/16" | 4-11/32" | 4-9/64" | 3-15/16" | 1-5/16" | 7-9/32" | 1-17/32" | 7.9 (4.2) | 364 |
| KEE-45-6 | BE-9900-6 | 4 | 9900 | 4 | 13-19/32" | 14-3/8" | 24-13/16" | 8-21/32" | 13-25/32" | 11-13/16" | 16-15/16" | 4-11/32" | 5-5/16" | 3-15/16" | 1-5/16" | 7-9/32" | 1-17/32" | 10.8 (5.7) | 448 |
| KEE-60-6 | BE-13200-6 | 5-1/3 | 13200 | 5 | 15-9/16" | 16-11/32" | 24-13/16" | 4-59/64" | 14-31/32" | 13" | 18-1/8" | NA | 5-5/16" | 4-5/32" | 1-5/16" | 8-9/32" | 1-17/32" | 13.4 (7.4) | 567 |
| KEE-80-6 | BE-17600-6 | 7-1/2 | 17600 | 5 | 15-9/16" | 16-11/32" | 28-47/64" | 4-59/64" | 14-31/32" | 13" | 18-1/8" | NA | 6-1/2" | 4-5/32" | 1-5/16" | 8-9/32" | 1-17/32" | 18.5 (10) | 662 |
| KEE-110-6 | BE-24200-6 | 10 | 24200 | 5 | 18-5/16" | 18-23/32" | 29-15/16" | 5-33/64" | 17-21/64" | 14-9/16" | 20-7/8" | NA | 6-1/2" | 4-15/16" | 1-1/2" | 9-15/32" | 1-25/32" | 27 (15) | 924 |
| KEE-140-6 | BE-30800-6 | 12 | 30800 | 6 | 20-9/32" | 20-11/16" | 34-21/32" | 5-33/64" | 18-29/32" | 20-3/32" | 22-7/16" | NA | 6-7/64" | 4-15/16" | 1-1/2" | 10-7/16" | 1-25/32" | 31 (17) | 1268 |
| KEE-165-6 | BE-36300-6 | 15 | 36300 | 6 | 20-9/32" | 20-11/16" | 36-39/64" | 5-33/64" | 18-29/32" | 20-3/32" | 22-7/16" | NA | 7-5/64" | 4-15/16" | 1-1/2" | 10-7/16" | 1-25/32" | 37 (20) | 1389 |
| KEE-185-6 | BE-40700-6 | 17-1/2 | 40700 | 6 | 22-1/16" | 22-7/16" | 36-7/32" | 5-33/64" | 20-15/32" | 20-3/32" | 24-1/32" | NA | 6-11/16" | 4-15/16" | 1-1/2" | 11-7/16" | 1-25/32" | 44 (22) | 1599 |
| Model | Replace Model | H.P. | Max Force (lbs) | Drawg. Ref. | Dimensions | Full Load Amps | W.T. (lbs) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | K | L | M | |||||||
| KEE-5-8 | BE-1100-8 | 1/2 | 1100 | 4 | 8-7/8" | 9-15/32" | 14-9/16" | 5-33/64" | 8-21/32" | 7-1/2" | 10-5/8" | 2-9/16" | 2-61/64" | 2-3/8" | 23/32" | 4-23/32" | 13/16" | 2.4 (1.5) | 100 |
| KEE-7.3-8 | BE-1606-8 | 4/5 | 1606 | 4 | 9-21/32" | 10-1/4" | 15-3/8" | 5-33/64" | 9-29/64" | 7-7/8" | 11-13/16" | 2-31/32" | 3-15/16" | 2-3/4" | 13/16" | 5-1/8" | 1-1/32" | 3.3 (2.0) | 130 |
| KEE-10-8 | BE-2200-8 | 1 | 2200 | 4 | 10-7/16" | 11-1/32" | 17-23/32" | 5-29/32" | 10-15/64" | 8-9/32" | 12-19/32" | 3-5/32" | 4-23/32" | 2-3/4" | 13/16" | 5-19/32" | 1-1/32" | 4.9 (3.3) | 175 |
| KEE-20-8 | BE-4400-8 | 2 | 4400 | 4 | 11-5/8" | 12-19/32" | 21-21/32" | 6-11/16" | 12-13/64" | 9-15/32" | 14-31/32" | 3-3/4" | 4-23/32" | 3-11/32" | 1-1/8" | 6-7/32" | 1-5/16" | 7.5 (4.4) | 300 |
| KEE-35-8 | BE-7710-8 | 3 | 7710 | 4 | 13-19/32" | 14-3/8" | 26-3/8" | 8-21/32" | 13-25/32" | 11-13/16" | 16-15/16" | NA | 4-9/64" | 3-15/16" | 1-5/16" | 7-9/32" | 1-17/32" | 9.5 (5.5) | 465 |
| KEE-42-8 | BE-9240-8 | 4 | 9240 | 4 | 13-19/32" | 14-3/8" | 28-3/4" | 8-21/32" | 13-25/32" | 11-13/16" | 16-15/16" | NA | 5-5/16" | 3-15/16" | 1-5/16" | 7-9/32" | 1-17/32" | 9.5 (5.5) | 486 |
| KEE-60-8 | BE-13200-8 | 5 | 13200 | 5 | 15-9/16" | 16-11/32" | 28-3/4" | 4-59/64" | 14-31/32" | 13-7/8" | 18-1/8" | NA | 5-5/16" | 4-5/32" | 1-5/16" | 8-9/32" | 1-17/32" | 14.6 (8.6) | 660 |
| KEE-77-8 | BE-16940-8 | 6 | 16940 | 5 | 15-9/16" | 16-11/32" | 32-3/4" | 4-59/64" | 14-31/32" | 13-7/8" | 18-1/8" | NA | 6-1/2" | 4-5/32" | 1-5/16" | 8-9/32" | 1-17/32" | 15 (7.5) | 803 |
| KEE-100-8 | BE-22000-8 | 8 | 22000 | 5 | 18-5/16" | 18-23/32" | 33-7/8" | 5-33/64" | 17-21/64" | 14-9/16" | 20-7/8" | NA | 8-17/64" | 4-15/16" | 1-1/2" | 9-15/32" | 1-25/32" | 25 (15) | 1070 |
| KEE-125-8 | BE-27500-8 | 10 | 27500 | 6 | 20-9/32" | 20-11/16" | 39-3/8" | 5-33/64" | 18-29/32" | 20-3/32" | 22-7/16" | NA | 8-59/64" | 4-15/16" | 1-1/2" | 10-7/16" | 1-25/32" | 31 (18) | 1420 |
| KEE-150-8 | BE-33000-8 | 12 | 33000 | 6 | 20-9/32" | 20-11/16" | 40-15/16" | 5-33/64" | 18-29/32" | 20-3/32" | 22-7/16" | NA | 8-17/64" | 4-15/16" | 1-1/2" | 10-7/16" | 1-25/32" | 37 (22) | 1560 |
| KEE-185-8 | BE-40700-8 | 15 | 40700 | 6 | 22-1/6" | 22-7/16" | 39-3/4" | 5-33/64" | 20-15/32" | 20-3/32" | 24-1/32" | NA | 8-21/32" | 4-15/16" | 1-1/2" | 11-7/16" | 1-25/32" | 43 (26) | 1800 |
Our Model JT (Jogger Tables) are designed to settle and compact powdered materials in whatever mold or container that your application requires. This small vibrating table is designed for tabletop operation and is able to handle loads up to 50 lbs. With 115V electromagnetic drives, our JT models are ideal for lab and factory use. These models are equipped with a variable amplitude controller built into the table. We offer three deck sizes and all of them are shipped wired and ready for operation. All you need to do is plug it in and turn it on!
