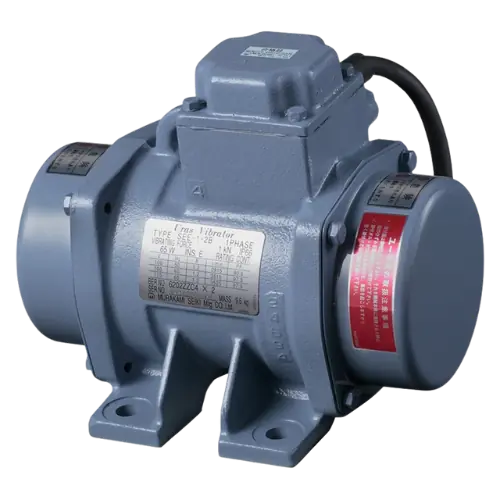

Single Phase Industrial Vibrating Motor SEE-2-2 – heavy-duty electric vibration motor for industrial material handling

Motor Metrics

Metric
Data
Phase
1

RPM

3600 (60 Hz)

Voltage
110 V
Weight (lbs)
30
H.P
1/6
Output (kW)
120
Max Vibrating Force (lbs)
440
Max Vibrating Force (kN)
2
Amp Draw @100 Volts
1.9
Protection Structure
IP66
Bearings
Greased and Sealed
Capacitor Starter
Required
Amp Draw @ 230 Volts (460)

SEE-2-2 Industrial Vibrating Motor (Single Phase)

Whether referred to as a vibratory motor, shaker motor, electric vibrator, or foot-mounted vibratory motor, the SEE-2-2 Single-Phase Industrial Vibrating Motor combines ease of use, adjustable force, and reliable dust-tight operation in a compact package.

Current Model # SEE-2-2
Crossover Model # (BES-440-2)
Technical Design
Single Phase Industrial Vibrating Motor SEE-2-2 technical dimension drawing for installation and mounting specifications
DIMENSIONS (in)
ABCDEFGHIJKLM
4-11/32"6-29/32"9-15/32"3-35/64"5-29/32"4-23/32"7-3/32"1-25/32"1-37/64"1-19/32"15/32"2-13/16"9/16"
Get A Quote
Arrow
Brochure
Arrow
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Get A Quote

Use our contact form to get a quote or call BPS at 330-220-1440

Contact Form
Call Sales
FAQ

Frequently Asked Questions

Do I need a special starter for this single-phase motor?
Arrow
Yes. A capacitor starter is required (except for the SEE-0.1-2 model) to provide the necessary torque for starting and to limit inrush current. Always use the recommended starter for your specific SEE model.
How can I modify the vibratory force?
Arrow
Easily adjust the motor’s eccentric weights. The default setting is 100% of max force, but you can increase or decrease it to match your application.
Is it suitable for continuous-duty operation?
Arrow
Absolutely. The SEE series, including the SEE-2-2, is rated for ongoing service at full capacity, provided regular maintenance is performed.
Can this motor replace a three-phase vibrator in my current system?
Arrow
Yes, if your system’s power supply is single-phase 110 V and the required force output aligns with the SEE-2-2’s specifications. Always confirm compatibility with existing control schemes and ensure the correct capacitor starter is installed.
