KEE-3-4 4 Pole Industrial Vibrating Motor compact unit for light-duty vibration applications

Motor Metrics

Metric
Data
Phase
3

RPM

1800

Voltage
230/460 V
Weight (lbs)
35
H.P
1/6
Output (kW)
0.13
Max Vibrating Force (lbs)
660
Max Vibrating Force (kN)
3
Amp Draw @100 Volts
Protection Structure
IP66
Bearings
Greased and Sealed
Capacitor Starter
N/A
Amp Draw @ 230 Volts (460)
0.8 (0.52)

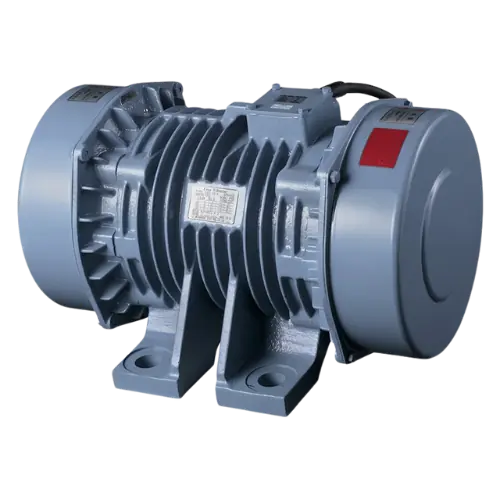

KEE-3-4 Industrial Vibrating Motor (4-Pole)

Whether you call it a vibratory motor, shaker motor, Uras motor, electric vibrator, or industrial vibrator, the KEE-3-4 4-Pole Vibratory Motor delivers reliable mid-range vibration for consistent material flow in bins, hoppers, screeners, and more.

Current Model # KEE-3-4
Crossover Model # (BE-660-4)
Technical Design
KEE-3-4 4 Pole Industrial Vibrating Motor detailed technical drawing with exact dimensions
DIMENSIONS (in)
ABCDEFGHIJKLM
6-1/8"7-3/32"10-5/8"3-5/32"5-29/32"4-11/32"7-3/32"1-19/32"2-11/64"1-3/8"13/32"3-5/16"15/32"
Get A Quote
Arrow
Brochure
Arrow
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Get A Quote

Use our contact form to get a quote or call BPS at 330-220-1440

Contact Form
Call Sales
FAQ

Frequently Asked Questions

How can I adjust the vibratory force?
Arrow
Reposition or rotate the eccentric weights on each side of the motor’s shaft. The default factory setting is 100% force, but you can reduce or increase it as needed.
Is the motor suitable for 24/7 operation?
Arrow
Yes. It’s continuously rated at maximum force, provided you follow standard installation, lubrication, and maintenance guidelines.
Can this motor be used outdoors?
Arrow
Absolutely. The IP66 enclosure safeguards against dust and water intrusion, making it suitable for many outdoor applications, though you should still shield it from extreme conditions when possible.
Does it come in other voltage options?
Arrow
While 230/460 V is standard for this model, the KEE series covers a broad range, including 575V and 230/380/460 V for international use. Check availability or consult the manufacturer for details.
