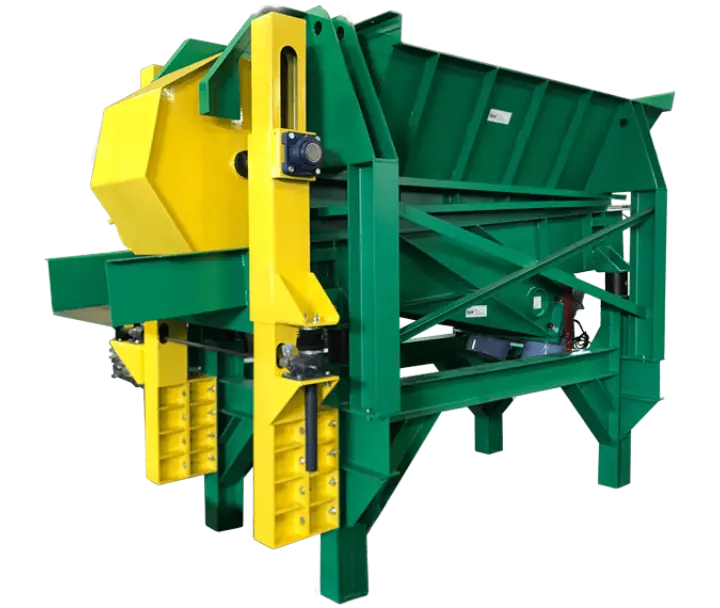

Metering Batch Feeder

Metering Batch Feeders are ideal for any application where materials need to be conveyed with an even flow of distribution. Materials are placed in a feeder with 5-20 cubic yard capacity and are then evenly distributed on the conveyer. Variable speed control allows for the consistent flow of material to meet your bulk processing and conveying requirements.

Technical Design

Option I: System Controls

  • A/C inverter drive for the Vibratory Feeder
  • Motor starter for the Rotating Drum
  • Drives to be mounted in a NEMA 12 Enclosure and located in the power distribution area
  • Operator control station rated at NEMA 4 to be located outside near the machine
  • All wiring will be completed to a terminal strip for easy field installation
  • Electrical requirements: 460V, 3PH, 60Hz

Option II: Continuous Height Measurement with Limit Switch

  • High/Low limit switch fro metering drum
  • Encoder for continuous height measurement
  • Prewired to local terminal junction box

Get A Quote
Arrow

Get A Quote

Use our contact form to get a quote or call BPS at 330-220-1440

FAQ

Frequently Asked Questions

How precise is the feed rate control?
Arrow
Accuracy depends on factors like material consistency and drive settings, but most setups can achieve highly repeatable feed rates. For more critical processes, load cells or PLC integration can improve accuracy further.
How do I maintain optimal performance?
Arrow
Yes. The design accommodates a broad spectrum of particle sizes and densities, provided you choose the right hopper size, conveyor type, and optional liners or coatings.
What is the typical maintenance schedule?
Arrow
A monthly check of the conveyor belt or screws, drive components, and hopper seals is sufficient for most operations. More frequent inspections may be necessary if you’re handling especially abrasive materials.
Can the feeder handle surge loads or high-volume spikes?
Arrow
Its metering design is meant for controlled flow. While it can accommodate short spikes, consistent feeding performs best with stable inbound flow. Integrating a surge hopper or buffer can help absorb large variations.
